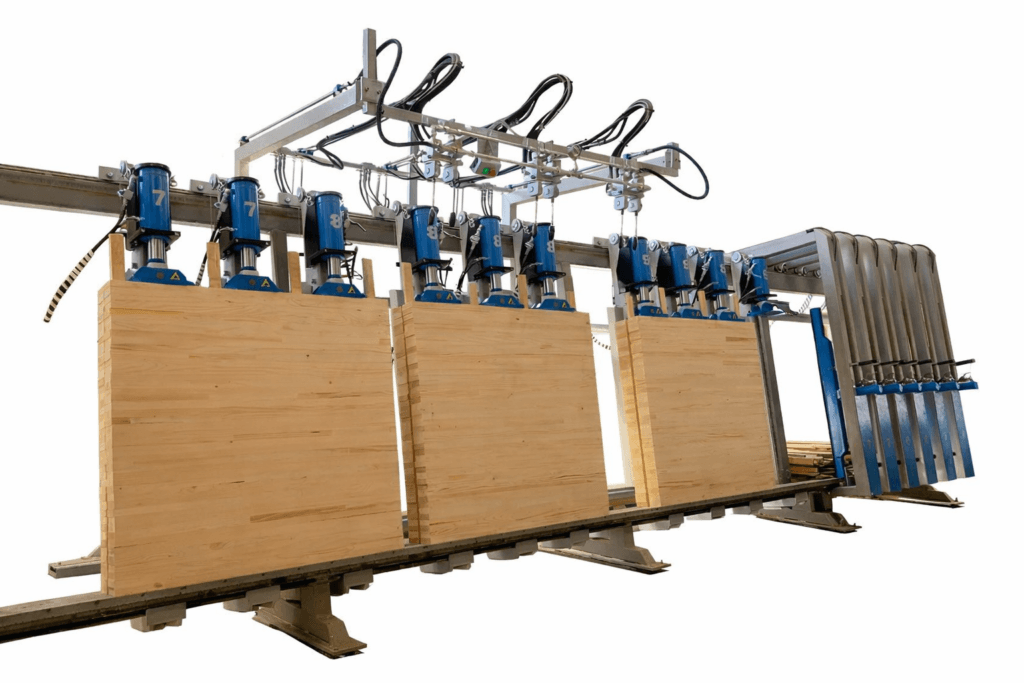

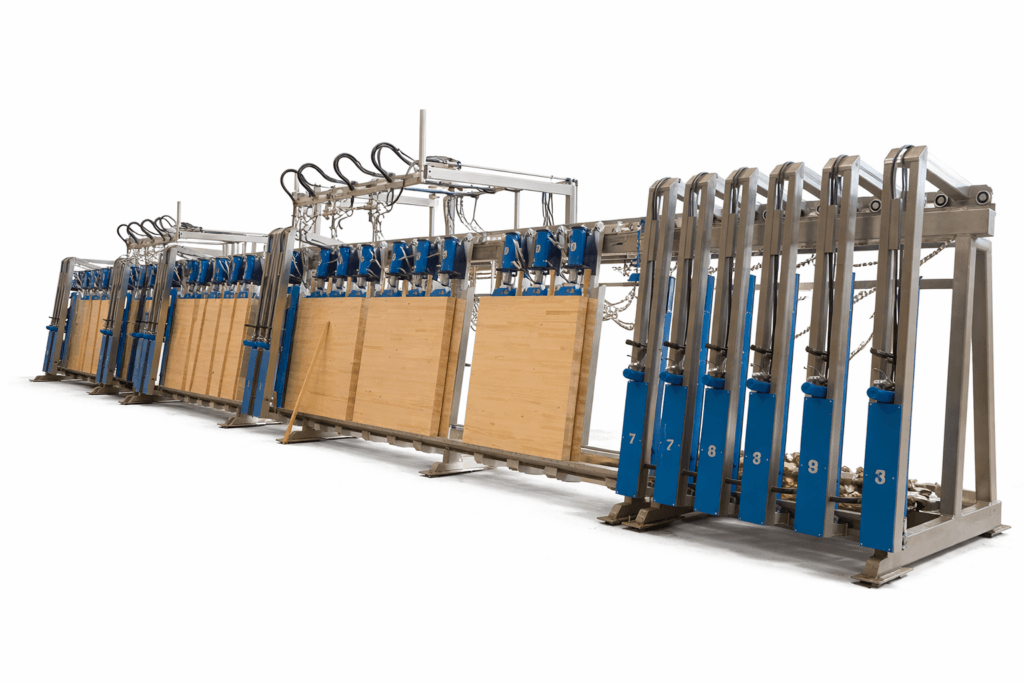

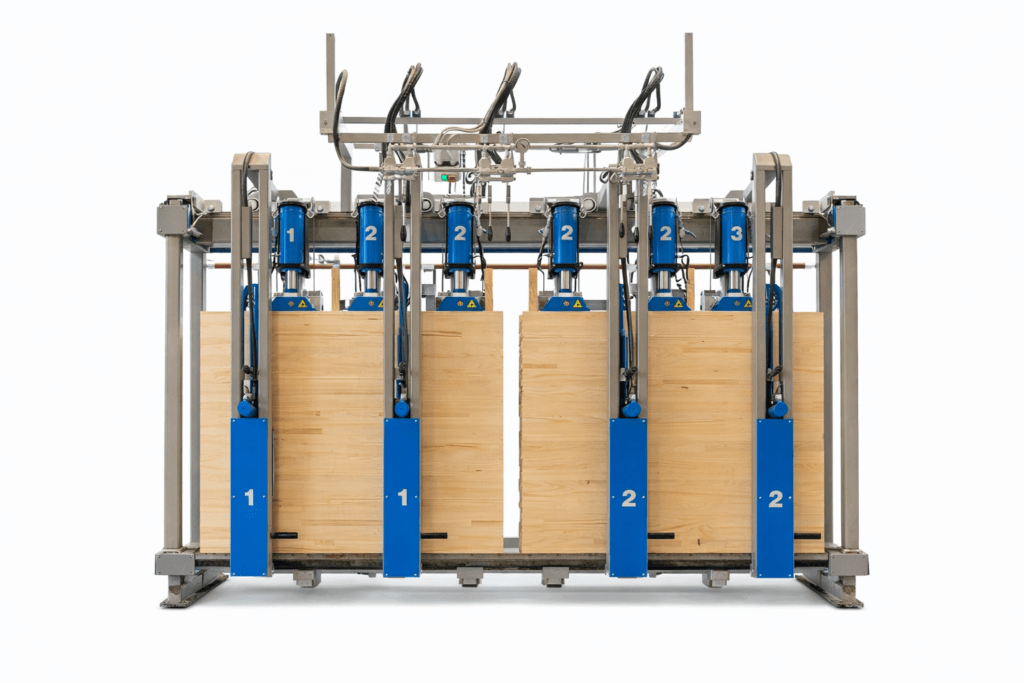

Hydraulic presses for lamination of wooden stock

Type SLV – G

The press is designed for cold edge gluing of various elements into a boards, profiles and other laminated parts with cold drying. Pressing is carried out by hydraulic cylinders. Pressing units are fixed. The aligning units are driven manually from the working areas on each sided of the press prior to the loading of work pieces. Each aligning unit has 1 hydraulic cylinder. Operating is performed by manually operated hydraulic valves.



Gallery



Tehnical specifications

Working length:
3000 – 20000 mm
Working height:
1000 – 1200 mm
Working thickness:
100 – 300 mm
Number of section:
1 – 10
Number of pressing cylinders:
6 – 24
Specific pressure:
9 – 12 kg/cm2
Number of aligning unit:
2 – 12
max. Working pressure:
180 bar
