Glue spreaders with conveyors for PVA glue

Type GA – ST Type GA – ZT Type GA – DT Type GA with marking set Type GA - MAG

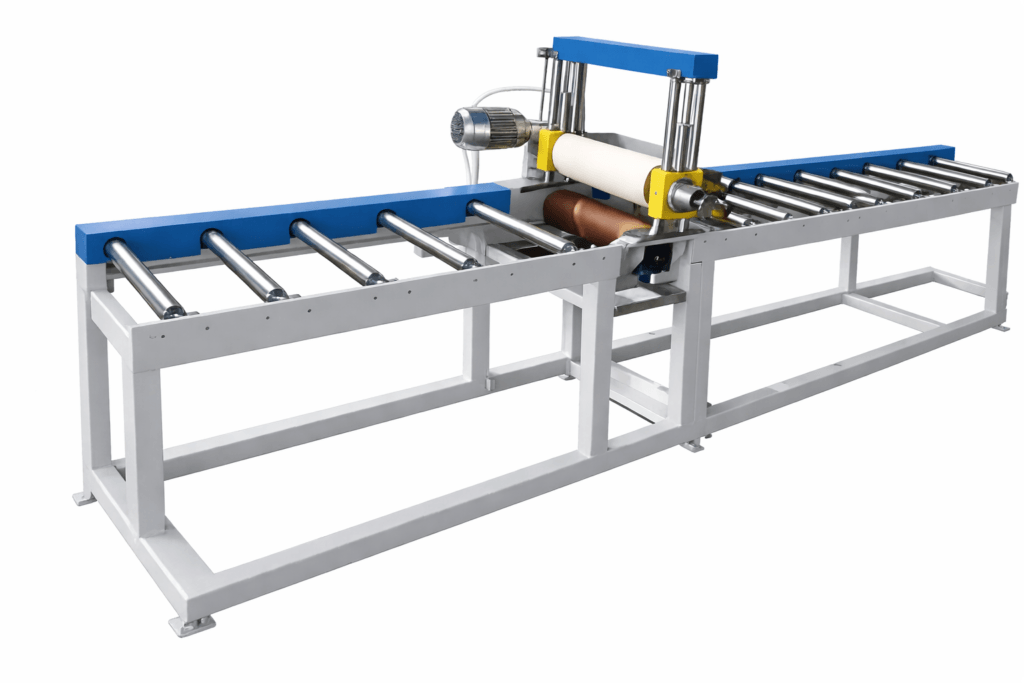

Type GA – ZT

Glue spreaders are designed for one sided glue application of surfaces and edges on flat work pieces. Spreading roller applies the glue from the upper side. The spreader is connected to conveyors. Equipped with driven or not driven rollers conveyor.

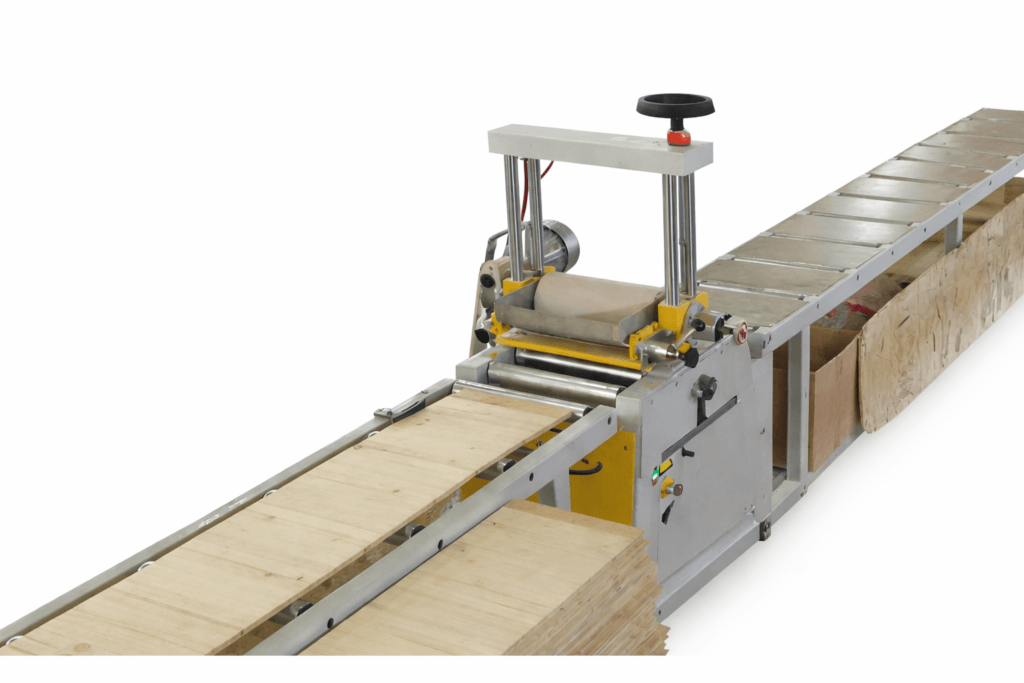

Gallery



Tehnical specifications

1. Infeed not driven roller conveyor:
- Length:
1500 – 3000 mm
- The rollers are driven and they are connected to the outfeed conveyor
2. Glue spreader:
- Working width:
200 – 600 mm
- Diameter of rollers:
140 mm
- Feeding speed:
20 m/min
- Hardness of rubber:
70 Shor
- Additional channel for waste glue
3. Outfeed not driven roller conveyor:
- Length:
1500 – 4000 mm
- The rollers are not driven and they are connected to the outfeed conveyor

Video



More info

If you want more information about our products please do not hesitate to contact us.

Enquiry
